Ladles

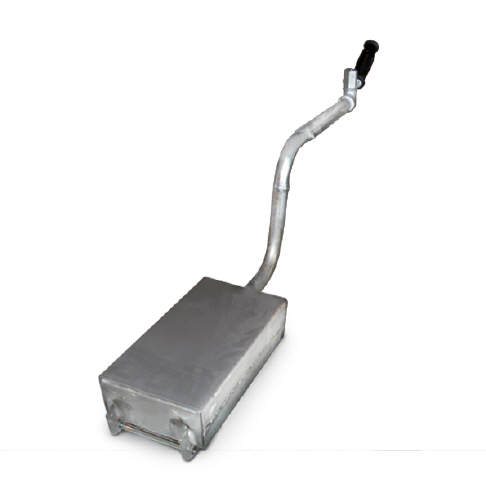

A ladle is a mobile muffle in refractory steel provided with an inert gas inlet. The muffle is designed to be placed in a chamber furnace with the parts themselves arranged in the muffle. It is then possible to work under protective gas.
 |
 |
 |
|
||
 |
||
|
||
 |
Product Description
Construction: The muffle is parallelepiped-shaped (with one hinged face closing by gravity), with a gas inlet (which also serves as a handle) and a mobile floor grid system on which the parts are placed. The mobile floor makes it easy to transfer the parts from the muffle to the quenching tank.
Heating: The maximum temperature withstood by the muffles is 1100 °C. Our muffles are available with our chamber furnaces for 1100 °C, or 1200 °C for more intensive use.
Type of gas: Working with non-flammable gas (nitrogen, forming gas 95-5 etc.).
Pneumatics: Our muffles are fitted with a valve to regulate the air supply and a flexible pipe.
| Model | Item code | Int. Vol. (L) | Int. Dim. (WxHxD) (mm) | Ext. Dim. (WxHxD) (mm) | Weight (kg) |
| Ladle S | N15400 | 1.4 | 120 x 60 x 200 | 125 x 65 x 260 | 4.5 |
| Ladle M | N15401 | 4 | 190 x 90 x 250 | 195 x 110 x 320 | 7.5 |
| Ladle L | N15402 | 10 | 250 x 140 x 295 | 255 x 155 x 420 | 11.5 |
Download product data sheet
