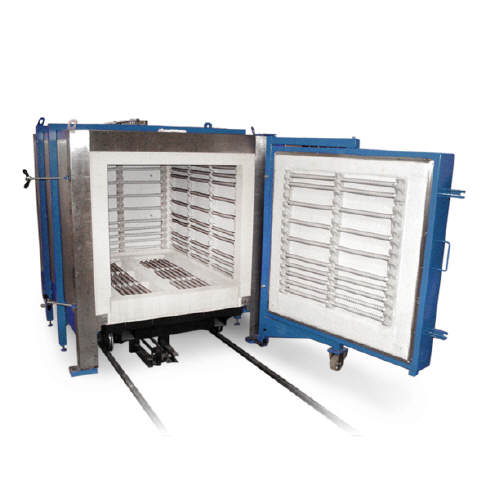

Car-Hearth Furnaces 1100 °C
Chamber furnace with mobile hearth (trolley on rails)
 |
 |
 |
|
||
 |
||
|
||
 |
Product Description
Construction: Robustly constructed in folded and profiled sheet steel.
Insulation: Multilayer insulation. Interior in ceramic fibre and refractory bricks.
Electricity: 3x400 VAC, 50 Hz.
Regulation: Axron Swiss temperature controller/programmer, 30 programs of 15 segments with delayed start time setting function.
Documentation: CE marking and operating instructions in English.
Options available upon request: Electric trolley, Metal or ceramic sole, Drop-down door, Tunnel oven (front and rear doors), Extended warranty.
| Model | Item code | Int. Vol. (L) | Int. Dim. (WxHxD) (mm) | Ext. Dim. (WxHxD) (mm) | Power (kW) |
| CH 1100-1500 | N16539 | 1500 | 1000 x 1000 x 1500 | 1500 x 1950 x 2200 | 56 |
| CH 1100-2000 | N16540 | 2000 | 1000 x 1000 x 2000 | 1500 x 1950 x 2700 | 75 |
| CH 1100-2400 | N16541 | 2400 | 1200 x 1000 x 2000 | 1700 x 1950 x 2700 | 110 |
| CH 1100-2500 | N16542 | 2500 | 1000 x 1000 x 2500 | 1500 x 1950 x 3200 | 120 |
| CH 1100-3000 | N16543 | 3000 | 1000 x 1000 x 3000 | 1500 x 1950 x 3700 | 172 |
| CH 1100-3000-H | N16544 | 3000 | 1200 x 1000 x 2500 | 1700 x 1950 x 3200 | 172 |
| CH 1100-3600 | N16545 | 3600 | 1200 x 1000 x 3000 | 1700 x 1950 x 3700 | 185 |
Download product data sheet
