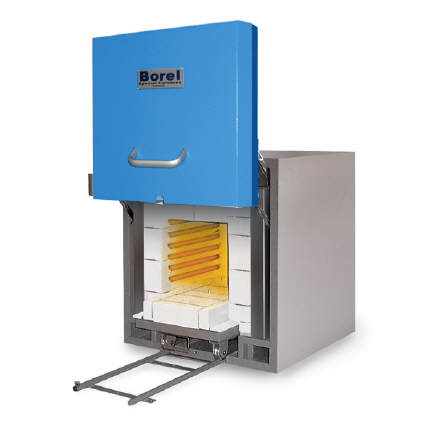

Car-Hearth Furnaces 1200 °C
Chamber furnace with mobile hearth (trolley on rails)
 |
 |
 |
|
||
 |
Product Description
Construction: Robust construction made of bent plate. Vertical lifting front door.
Insulation: Multilayer insulation. Interior in ceramic fibre and refractory bricks.
Aeration: Exhaust vent on top.
Heating: Coil resistors on ceramic tubes. The heating is turned off at the opening of the door.
Electricity: 3x400 VAC, 50 Hz.
Regulation: Axron Swiss PID temperature controller.
Documentation: CE marking and operating instructions in English.
Delivered with: Removable ceramic sole.
Options available upon request: Shop table, Axron Swiss Temperature Programmer, Timer, Protection of the heating elements, Extended warranty.
| Model | Item code | Int. Vol. (L) | Int. Dim. (WxHxD) (mm) | Ext. Dim. (WxHxD) (mm) | Power (kW) | Weight (kg) |
| FM 1200-45 | N16348 | 45 | 300 x 300 x 500 | 660 x 820 x 810 | 7.5 | 106 |
| FM 1200-60 | 60 | 400 x 300 x 500 | 760 x 800 x 840 | 9.6 | 190 |
Download product data sheet
