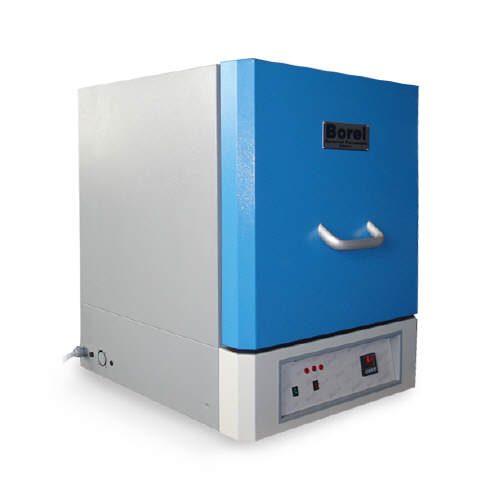

Chamber Furnaces 1300 °C
Electric chamber furnace for all applications
 |
 |
 |
|
||
 |
||
|
||
 |
Product Description
Construction: Electric chamber furnace for all applications.
Construction: Robust construction made of bent plate. Vertical lifting front door.
Insulation: Multilayer insulation. Interior in ceramic fibre and refractory bricks.
Aeration: Rear exhaust.
Heating: Coil resistors on ceramic tubes. The heating is turned off at the opening of the door.
Electricity: 18 liters and less, single-phase 230 VAC, 50 Hz. From 25 liters, 3x400 VAC, 50 Hz.
Regulation: Axron Swiss PID temperature controller.
Documentation: CE marking and operating instructions in English.
Delivered with: Removable ceramic sole.
Options available upon request: Axron Swiss Temperature Programmer, Over temperature protection, Additional metal or ceramic sole, Timer, Extended warranty.
| Model | Item code | Int. Vol. (L) | Int. Dim. (WxHxD) (mm) | Ext. Dim. (WxHxD) (mm) | Power (kW) | Weight (kg) |
| FP 1300-6 | G14986 | 7.0 | 200 x 140 x 250 | 550 x 650 x 580 | 2.45 | 58 |
| FP 1300-10 | G14989 | 10 | 200 x 200 x 250 | 560 x 720 x 640 | 3.6 | 67 |
| FP 1300-15 | G14990 | 15 | 220 x 230 x 300 | 560 x 790 x 640 | 3.6 | 73 |
| FP 1300-30 | G14992 | 30 | 280 x 280 x 380 | 590 x 790 x 690 | 6.0 | 84 |
| FP 1300-45 | G14745 | 45 | 300 x 300 x 500 | 660 x 820 x 810 | 7.5 | 114 |
