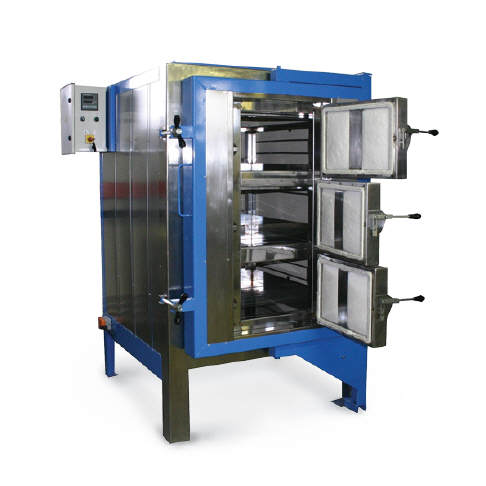

Industrial Furnaces 550 °C
Electric chamber furnace for all applications
 |
 |
 |
|
||
 |
||
|
||
 |
Product Description
Construction: Main door includes 3 small doors with access to the removable modular shelves.
Insulation: Multilayer insulation. Interior in ceramic fibre and refractory bricks.
Aeration: Air intake and exhaust controlled by temperature controller.
Heating: Shielded electrical resistors on 4 surfaces.The heating is turned off at the opening of the door.
Electricity: 3x400 VAC, 50 Hz.
Regulation: Axron Swiss temperature controller/programmer, 30 programs of 15 segments with delayed start time setting function.
Documentation: CE marking and operating instructions in English.
Delivered with: 3 removable shelves.
Version: Model 2400 liters and above equipped with double doors.
Options available upon request: Axron Swiss Temperature Programmer, Customizing the number of small doors, Record keeping, computer connection for archiving/control, Personal protective equipment, Extended warranty.
| Model | Item code | Int. Vol. (L) | Int. Dim. (WxHxD) (mm) | Ext. Dim. (WxHxD) (mm) | Power (kW) | Weight (kg) |
| FI 550-500 | G201894 | 570 | 700 x 1000 x 820 | 1200 x 1960 x 1400 | 14 | 520 |
| FI 550-700 | G202024 | 720 | 800 x 1100 x 820 | 1300 x 1960 x 1400 | 17 | 600 |
| FI 550-1000 | G14893 | 1050 | 800 x 1100 x 1200 | 1300 x 1960 x 1800 | 21 | 680 |
| FI 550-1600 | G14898 | 1580 | 1200 x 1100 x 1200 | 1700 x 1960 x 1800 | 24 | 760 |
| FI 550-2100 | G14900 | 2160 | 1200 x 1200 x 1500 | 1700 x 1960 x 2100 | 30 | 900 |
| FI 550-2400 | G14902 | 2400 | 1650 x 1200 x 1200 | 2150 x 1960 x 1800 | 34 | 1100 |
| FI 550-3700 | G14904 | 3700 | 1650 x 1200 x 1900 | 2150 x 1960 x 2500 | 38 | 1300 |
Download product data sheet
