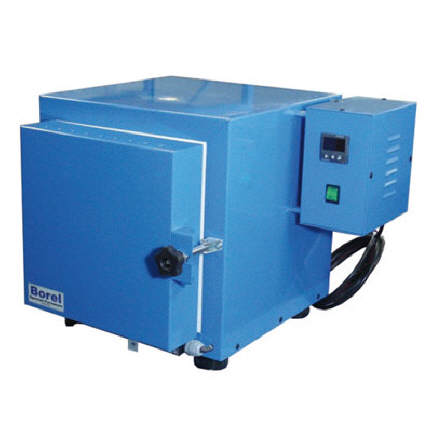

Lab furnaces 1100 °C
Compact electric chamber furnace for all applications
 |
 |
 |
|
||
 |
Product Description
Construction: Hinged door.
Insulation: Multilayer insulation. Interior in ceramic fibre and refractory bricks.
Aeration: Exhaust vent on top.
Heating: Electrical coil resistors held in grooves on 2 surfaces. The heating is turned off at the opening of the door.
Electricity: Single-phase 230 VAC, 50 Hz.
Regulation: Axron Swiss PID temperature controller.
Documentation: CE marking and operating instructions in English.
Delivered with: Exhaust vent plug.

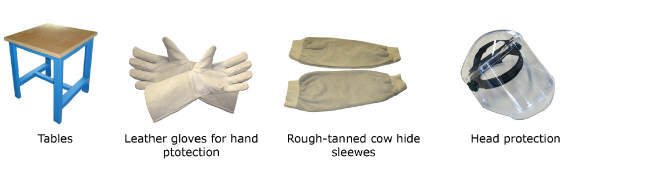

Options available upon request: Axron Swiss Temperature Programmer, Flammable gas safety equipment, Shop table, Personal protective equipment, Extended warranty.
| Model | Item code | Int. Vol. (L) | Int. Dim. (WxHxD) (mm) | Ext. Dim. (WxHxD) (mm) | Power (kW) | Weight (kg) |
| FL 1100-10 | N14734 | 10.6 | 215 x 220 x 210 | 545 x 425 x 520 | 1.2 | 42 |
Download product data sheet
