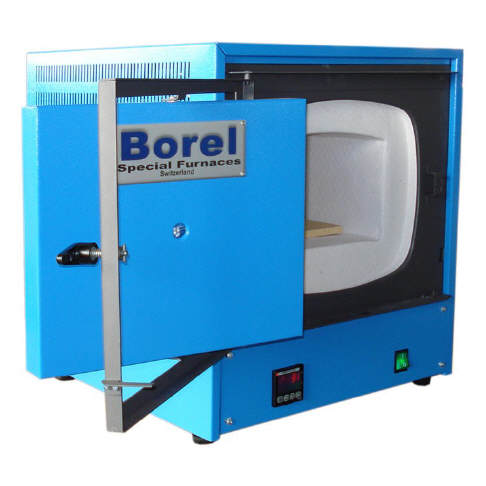

ThermoLab Furnaces 1100 °C
Electric chamber furnace, testing furnace, not suitable for intensive industrial use
 |
 |
 |
|
||
 |
||
|
||
 |
Product Description
Construction: Robustly constructed in folded sheet steel, horizontal opening door for 8 L model, vertical for 3 L version.
Insulation: Light fibres for all walls.
Heating: Heating muffle. Heating interruption on door opening.
Electricity: Single-phase 230 VAC, 50 Hz.
Regulation: Axron Swiss PID temperature controller.
Documentation: CE marking and operating instructions in English.
Delivered with: Removable ceramic sole.
Options available upon request: Axron Swiss Temperature Programmer, Timer, Shop table, Aluminised protective gloves, Extended warranty.
| Model | Item code | Int. Vol. (L) | Int. Dim. (WxHxD) (mm) | Ext. Dim. (WxHxD) (mm) | Power (kW) | Weight (kg) |
| TL 1100-3 | G200282 | 3 | 120 x 105 x 200 | 345 x 430 x 470 | 1.7 | 18 |
| TL 1100-8 | G200281 | 8.2 | 195 x 135 x 310 | 440 x 495 x 530 | 1.8 | 28 |
Download product data sheet
