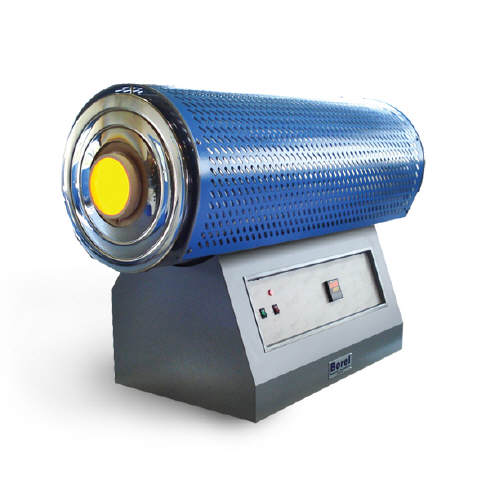

Tube Furnaces 1600 °C
Tubular electric furnace, for all applications
 |
 |
 |
|
||
 |
||
|
||
 |
Product Description
Construction: Robust construction made of bent plate.
Insulation: Multilayer insulation. Interior in ceramic fibre and refractory bricks.
Heating: Heating elements in silicon carbide.
Electricity: 3x400 VAC, 50 Hz.
Regulation: Axron Swiss PID temperature controller.
Documentation: CE marking and operating instructions in English.
Options available upon request: Axron Swiss Temperature Programmer, Equipment to work gas, Equipment to work under vacuum, Vertical version, Extended warranty
| Model | Item code |
Heated Lenght (mm) |
Tube Dim. (Øxlenght) (mm) |
Ext. Dim. (WxHxD) (mm) | Power (kW) | Weight (kg) |
| TU 1600-50-250 | N16200 | 250 | 50 x 800 | 665 x 675 x 400 | 4.0 | 46 |
| TU 1600-50-450 | N16202 | 450 | 50 x 900 | 850 x 745 x 400 | 5.5 | 48 |
| TU 1600-75-450 | G15046 | 450 | 75 x 1000 | 850 x 745 x 400 | 6.5 | 73 |
| TU 1600-50-610 | N16204 | 610 | 50 x 1300 | 1150 x 745 x 400 | 6.0 | 52 |
| TU 1600-75-610 | N17936 | 610 | 75 x 1300 | 1150 x 745 x 400 | 7.5 | 85 |
Download product data sheet
