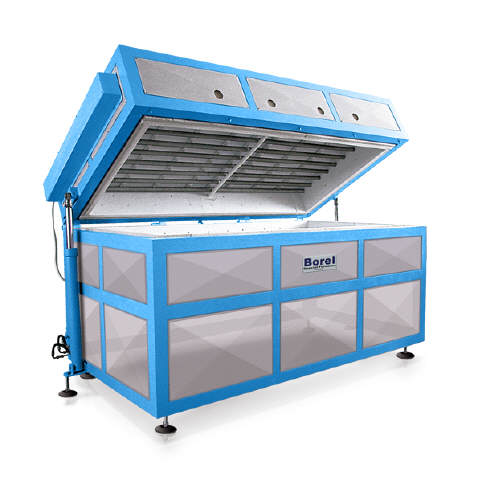

Glass Furnaces 1000 °C

Electric furnace for glass work

Product Description
Construction: Robustly built in folded sheet steel. Bell furnace has opening assisted by hydraulic cylinders.
Insulation: Multilayer insulation. Interior in ceramic fibre and refractory bricks.
Aeration: Exhaust vent on top.
Heating: Spiral wound resistors on the roof of the furnace.
Electricity: Voltage 230 VAC, up to 10 kW and voltage 3x400 VAC from 10 kW. 50 Hz.
Regulation: Axron Swiss PID temperature controller.
Documentation: CE marking and operating instructions in English.

Options available upon request: Axron Swiss Temperature Programmer, Time and temperature recorder, 24 hour programmable timer, Over temperature protection, Extended warranty.

Model Item code Int. Vol. (L) Int. Dim. (WxHxD) (mm) Power (kW)
FF 1000-100 N16316 100 500 x 400 x 500 8.0
FF 1000-140 N16318 140 700 x 400 x 500 10.0
FF 1000-180 N16319 180 900 x 400 x 500 10.0
FF 1000-260 N16320 260 1100 x 400 x 600 12.0
FF 1000-340 N16321 340 1200 x 400 x 700 15.0
FF 1000-420 N16322 420 1500 x 400 x 700 18.0
FF 1000-480 N16323 480 2000 x 400 x 600 18.0
FF 1000-560 N16324 560 2000 x 400 x 700 22.0

Download product data sheet
