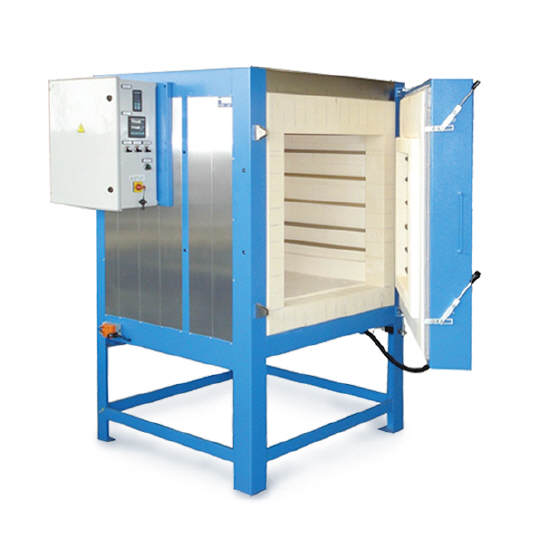

Industrial Furnaces 1100 °C
Electric chamber furnace for all applications
 |
 |
 |
|
||
 |
||
|
||
 |
Product Description
Construction: Mechanically welded frame. Racks according to model.
Insulation: Multilayer insulation. Interior in ceramic fibre and refractory bricks.
Aeration: Air intake and exhaust controlled by temperature controller.
Heating: Electrical coil resistors on 4-6 sides of the furnace. Resistors mounted on ceramic tubes and/or in grooves. The heating is turned off at the opening of the door.
Electricity: 3x400 VAC, 50 Hz.
Regulation: Axron Swiss temperature controller/programmer.
Documentation: CE marking and operating instructions in English.
Delivered with: Removable ceramic sole.
Options available upon request: Additional metal or ceramic sole, Time and temperature recorder, Software for PC control and recording, Circulation of inert gas, Extended warranty.
| Model | Item code | Int. Vol. (L) | Int. Dim. (WxHxD) (mm) | Ext. Dim. (WxHxD) (mm) | Power (kW) | Weight (kg) |
| FI 1100-50 | G14930 | 52 | 370 x 400 x 350 | 730 x 1680 x 840 | 5.2 | 220 |
| FI 1100-120 | G201872 | 120 | 470 x 500 x 500 | 820 x 1680 x 950 | 9.0 | 270 |
| FI 1100-180 | G201863 | 175 | 530 x 600 x 550 | 920 x 1680 x 1090 | 12 | 375 |
| FI 1100-250 | G14931 | 245 | 680 x 680 x 530 | 1100 x 1780 x 1090 | 14 | 450 |
| FI 1100-400 | G14932 | 395 | 780 x 780 x 650 | 1200 x 1880 x 1240 | 21 | 590 |
| FI 1100-740 | G202103 | 740 | 840 x 1100 x 800 | 1300 x 1980 x 1410 | 32 | 950 |
| FI 1100-1100 | G14933 | 1110 | 1040 x 1150 x 930 | 1500 x 1980 x 1540 | 42 | 1310 |
| FI 1100-1600 | G14934 | 1610 | 1290 x 1200 x 1040 | 1750 x 1980 x 1650 | 52 | 1520 |
