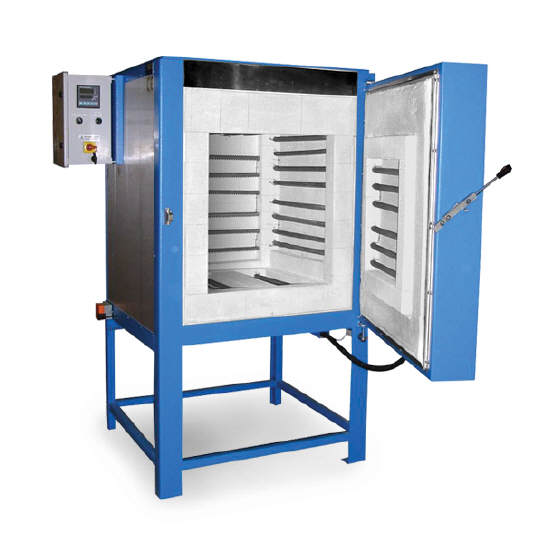

Industrial Furnaces 600 °C
Electric chamber furnace for all applications
 |
 |
 |
|
||
 |
||
|
||
 |
Product Description
Construction: Mechanically welded frame. Racks according to model.
Insulation: Multilayer insulation. Interior in ceramic fibre and refractory bricks.
Aeration: Air intake and exhaust controlled by temperature controller.
Heating: Electrical coil resistors on 4-6 sides of the furnace. Resistors mounted on ceramic tubes and/or in grooves. The heating is turned off at the opening of the door.
Electricity: 3x400 VAC, 50 Hz.
Regulation: Axron Swiss temperature controller/programmer.
Documentation: CE marking and operating instructions in English.
Delivered with: Removable ceramic sole.
Options available upon request: Additional metal or ceramic sole, Time and temperature recorder, Software for PC control and recording, Shelf, Extended warranty.
| Model | Item code | Int. Vol. (L) | Int. Dim. (WxHxD) (mm) | Ext. Dim. (WxHxD) (mm) | Power (kW) | Weight (kg) |
| FI 600-60 | G14915 | 55 | 390 x 400 x 350 | 730 x 1680 x 840 | 5.2 | 190 |
| FI 600-130 | G201790 | 130 | 490 x 530 x 500 | 820 x 1680 x 950 | 9.0 | 230 |
| FI 600-180 | G201874 | 180 | 550 x 600 x 550 | 920 x 1680 x 1090 | 12 | 320 |
| FI 600-300 | G14916 | 300 | 700 x 680 x 650 | 1100 x 1780 x 1240 | 17 | 440 |
| FI 600-500 | G14917 | 500 | 800 x 780 x 810 | 1200 x 1880 x 1400 | 24 | 600 |
| FI 600-850 | G14918 | 860 | 900 x 1150 x 830 | 1300 x 1980 x 1410 | 30 | 840 |
| FI 600-1550 | G14919 | 1550 | 1350 x 1200 x 960 | 1750 x 1980 x 1540 | 48 | 1300 |
