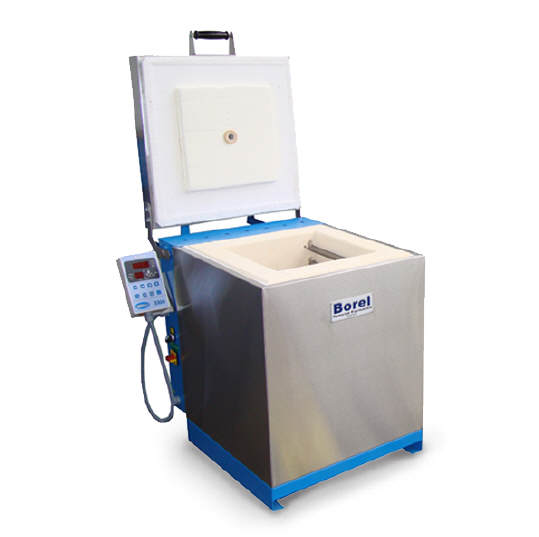

Top Loading Furnaces 1100 °C

Compact electric chamber furnace for all applications

Product Description
Construction: Mechanically welded frame.
Insulation: Multilayer insulation. Interior in ceramic fibre and refractory bricks.
Aeration: Exhaust vent on top.
Heating: Coil resistors on ceramic tubes. The heating is turned off at the opening of the door.
Electricity: 39 liters, single-phase 230 VAC, 50 Hz; 58 liters, 3x400 VAC, 50 Hz.
Regulation: Axron Swiss PID temperature controller.
Documentation: CE marking and operating instructions in English.

Options available upon request: Metal or ceramic sole, Personal protective equipment, Shelf, Shop table, Extended warranty.

Model Item code Int. Vol. (L) Int. Dim. (WxHxD) (mm) Ext. Dim. (WxHxD) (mm) Power (kW) Weight (kg)
TH 1100-40 N16248 39 330 x 330 x 360 630 x 620 x 750 4.1 73
TH 1100-60 N16249 58 330 x 490 x 360 630 x 780 x 750 5.0 88

Download product data sheet
