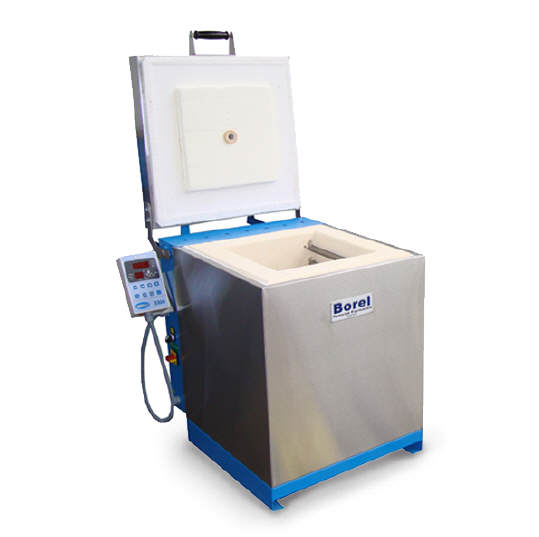

Top Loading Furnaces 1280 °C
Electric chamber furnace, testing furnace, not suitable for intensive industrial use
 |
 |
 |
|
||
 |
||
|
||
 |
Product Description
Construction: Mechanically welded frame.
Insulation: Multilayer insulation. Interior in ceramic fibre and refractory bricks.
Aeration: Exhaust vent on top.
Heating: Coil resistors on ceramic tubes. The heating is turned off at the opening of the door.
Electricity: 39 liters, single-phase 230 VAC, 50 Hz; 58 liters, 3x400 VAC, 50 Hz.
Regulation: Axron Swiss PID temperature controller.
Documentation: CE marking and operating instructions in English.
Options available upon request: Metal or ceramic sole, Personal protective equipment, Shelf, Shop table, Extended warranty.
| Model | Item code | Int. Vol. (L) | Int. Dim. (WxHxD) (mm) | Ext. Dim. (WxHxD) (mm) | Power (kW) | Weight (kg) |
| TH 1280-40 | N16229 | 39 | 330 x 330 x 360 | 630 x 620 x 750 | 4.1 | 73 |
| TH 1280-60 | N16230 | 58 | 330 x 490 x 360 | 630 x 780 x 750 | 5.0 | 88 |
Download product data sheet
