FF 1000
Glass Furnaces 1000°C
Electric furnace for glass work
Type : Electric furnace for glass work.

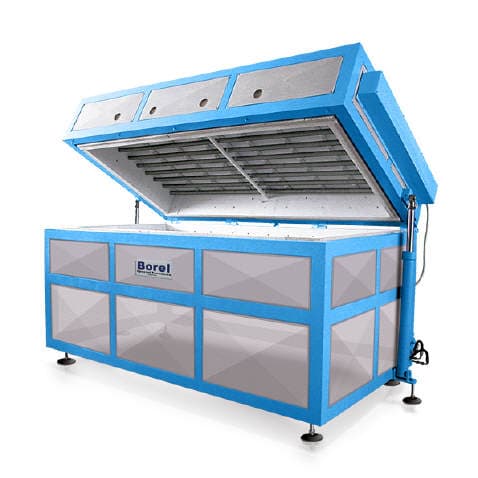

Construction : Bell furnace with assisted opening by hydraulic cylinders.
Insulation : Interior in ceramic fibre and refractory bricks.
Exhaust : Exhaust vent on top.
Heating : Spiral wound resistors on the roof of the furnace.
Regulation : Axron Swiss PID temperature controller.
Documentation : CE marking and operating instructions.
Specifications
| Model | Item code | Volume (L) | Internal dimensions (W×H×D mm) | External dimensions (W×H×D mm) | Power (kW) | Weight (kg) |
|---|---|---|---|---|---|---|
| FF 1000-100 | N16316 | 100 | 500 x 400 x 500 | — | 8.0 | — |
| FF 1000-140 | N16318 | 140 | 700 x 400 x 500 | — | 10 | — |
| FF 1000-180 | N16319 | 180 | 900 x 400 x 500 | — | 10 | — |
| FF 1000-260 | N16320 | 260 | 1100 x 400 x 600 | — | 12 | — |
| FF 1000-340 | N16321 | 340 | 1200 x 400 x 700 | — | 15 | — |
| FF 1000-420 | N16322 | 420 | 1500 x 400 x 700 | — | 18 | — |
| FF 1000-480 | N16323 | 480 | 2000 x 400 x 600 | — | 18 | — |
| FF 1000-560 | N16324 | 560 | 2000 x 400 x 700 | — | 22 | — |
