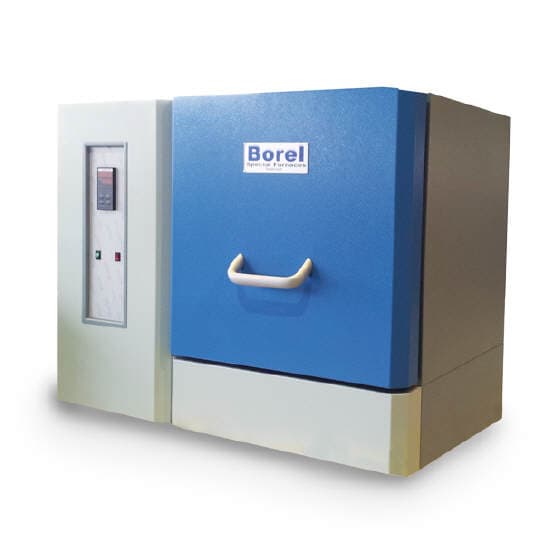

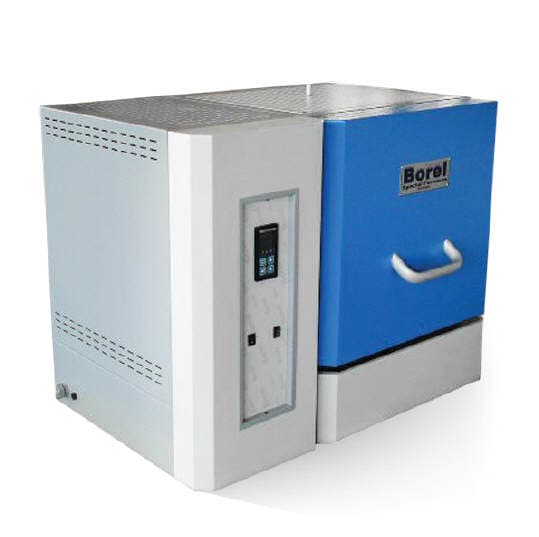

MO 1700 - MO 1800
High Temperature Furnaces 1700°C & 1800°C
Electric chamber furnace for all applications, high temperature
Type : Electric chamber furnace for all applications, high temperature.

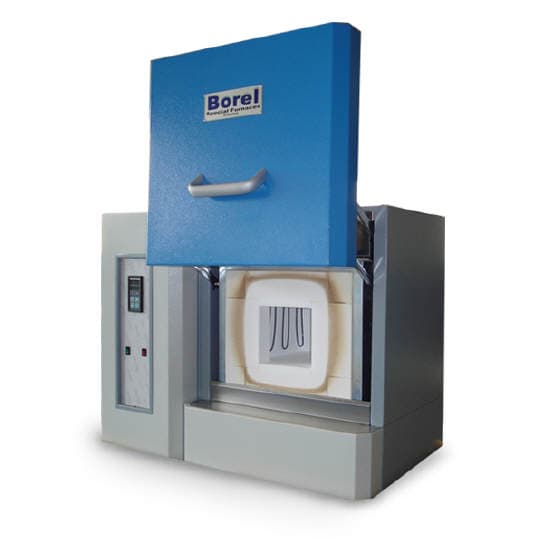

Construction : Robust construction made of bent plate, vertical lifting front door.
Insulation : Interior in ceramic fibre and refractory bricks.
Heating : Heating elements type MoSi2.
Regulation : Axron Swiss PID temperature controller.
Documentation : CE marking and operating instructions.
Specifications
| Model | Item code | Volume (L) | Internal dimensions (W×H×D mm) | External dimensions (W×H×D mm) | Power (kW) | Weight (kg) |
|---|---|---|---|---|---|---|
| MO 1700-2 | G15016 | 2.5 | 120 x 140 x 150 | 510 x 770 x 510 | 3.3 | — |
| MO 1700-4 | G15017 | 3.9 | 140 x 140 x 200 | 820 x 660 x 520 | 4.4 | — |
| MO 1700-8 | G15018 | 8.1 | 180 x 180 x 250 | 920 x 700 x 520 | 7.2 | — |
| MO 1800-2 | G15020 | 2.5 | 120 x 140 x 150 | 510 x 770 x 510 | 3.3 | — |
| MO 1800-4 | G15021 | 3.9 | 140 x 140 x 200 | 820 x 660 x 520 | 4.4 | — |
| MO 1800-8 | G15022 | 8.1 | 180 x 180 x 250 | 920 x 700 x 520 | 7.2 | — |
