FI 1250
Industrial Furnaces 1250°C
Electric chamber furnace for all applications
Type : Electric chamber furnace for all applications.

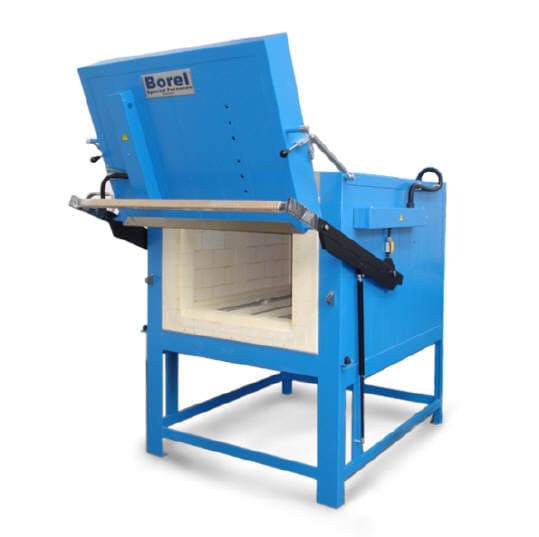

Door : Manually operated vertical-opening door, counterweighted for easy opening, avoids direct contact with the hot surface.
Insulation : Interior in ceramic fibre and refractory bricks.
Heating : Electrical coil resistors mounted on ceramic tubes and/or in grooves depending on the models.
Regulation : Axron Swiss temperature controller/programmer, 30 programs of 15 segments with delayed start.
Documentation : CE marking and operating instructions.
Delivered with : Removable ceramic sole.
Specifications
| Model | Item code | Volume (L) | Internal dimensions (W×H×D mm) | External dimensions (W×H×D mm) | Power (kW) | Weight (kg) |
|---|---|---|---|---|---|---|
| FI 1250-53 | G201867 | 52.5 | 350 x 300 x 500 | 1050 x 1550 x 1600 | 12 | — |
| FI 1250-63 | G201873 | 63 | 350 x 300 x 600 | 1050 x 1550 x 1700 | 14 | — |
| FI 1250-84 | G14944 | 84 | 350 x 300 x 800 | 1050 x 1550 x 1900 | 21 | — |
| FI 1250-120 | G14560 | 120 | 500 x 400 x 600 | 1250 x 1650 x 1850 | 21 | — |
| FI 1250-140 | G14946 | 140 | 350 x 400 x 1000 | 1050 x 1650 x 2100 | 21 | — |
| FI 1250-160 | G14947 | 160 | 500 x 400 x 800 | 1250 x 1650 x 2000 | 24 | — |
| FI 1250-200 | G201817 | 200 | 500 x 400 x 1000 | 1250 x 1650 x 2200 | 30 | — |
| FI 1250-280 | G202050 | 280 | 700 x 500 x 800 | 1450 x 1750 x 2050 | 33 | — |
| FI 1250-350 | G14698 | 350 | 700 x 500 x 1000 | 1450 x 1700 x 2200 | 33 | — |
| FI 1250-420 | G14948 | 420 | 700 x 500 x 1200 | 1450 x 1750 x 2400 | 37 | — |
| FI 1250-490 | G14949 | 490 | 700 x 700 x 1000 | 1450 x 1950 x 2250 | 40 | — |
| FI 1250-640 | G14868 | 640 | 800 x 800 x 1000 | 1550 x 1950 x 2300 | 52 | — |
