KN 1050
Tilting Furnace 1050°C

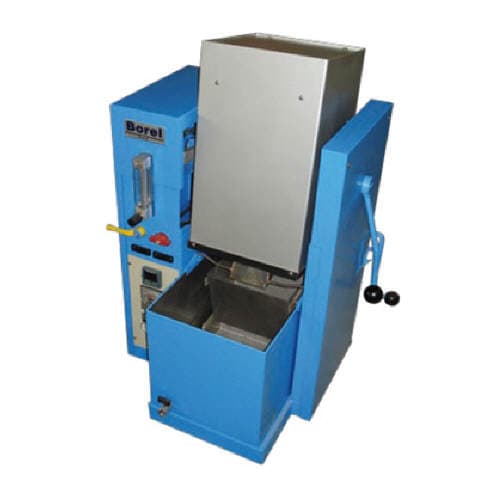

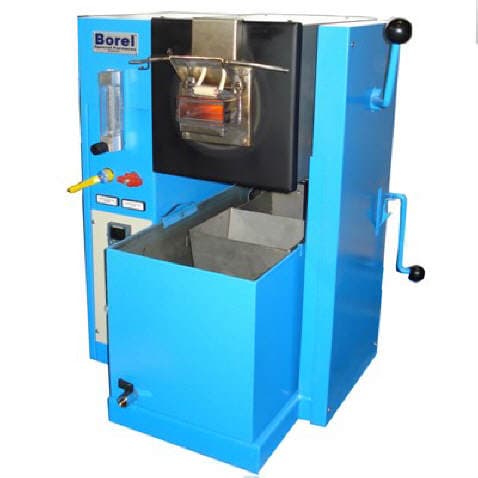

Small furnace with metal chamber that tilts into a quenching tank
Type : Small furnace with metal chamber that tilts into a quenching tank for quenching or annealing applications, working with inert or flammable (optional) gas.
Application : Transfer of parts from the furnace into the quenching tank without contact with air. Parts recovery basket included.
Construction : Metallic housing insulated from quenching basket. Stainless steel tank for quenching liquid.
Heating : Working chamber surrounded by heating elements.
Regulation : Axron Swiss PID temperature controller.
Documentation : CE marking and operating instructions.
Delivered with : Ladle.
Specifications
| Model | Item code | Volume (L) | Internal dimensions (W×H×D mm) | External dimensions (W×H×D mm) | Power (kW) | Weight (kg) |
|---|---|---|---|---|---|---|
| KN 1100-40 | N18256 | 0.68 | 70 x 20 x 98 / 300 | 600 x 700 x 600 | 2.0 | — |
| KN 1050-320 | N15237 | 2.7 | 150 x 60 x 160 / 490 | 1350 x 1700 x 1185 | 4.0 | — |
