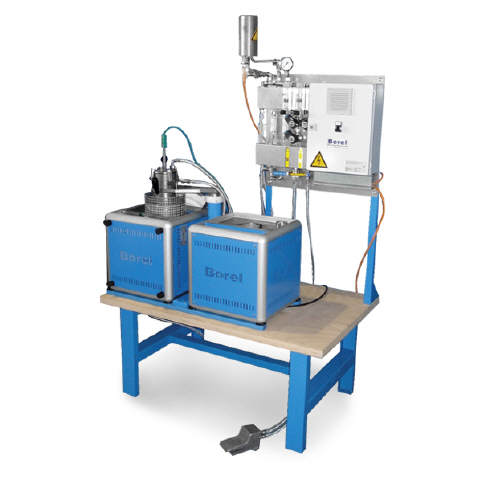

Retort Furnaces with Flammable Gas 1050 °C
Furnace for working with flammable gas (hydrogen, cracked ammonia, formiergas etc.)
 |
 |
 |
|
||
 |
Product Description
Construction: Semi-automatic jib crane. Flat-bottomed airtight retort.
Insulation: Multilayer insulation. Interior in ceramic fibre and refractory bricks.
Heating: Working chamber surrounded by heating elements.
Type of gas: Nitrogen, hydrogen or gas mixture: forming gas, cracked ammonia.
Electricity: Single-phase 230 VAC, 50 Hz.
Regulation: PID Axron Swiss digital temperature controller. Timer.
Documentation: CE marking and operating instructions in English.
Delivered with: Furnace + retort with burner + flammable gas equipment + retort support.
Options available upon request: Installation, commissioning, training, Forced cooling device of the retort, Interior baskets for retort, Axron Swiss Temperature Programmer, Extended warranty.
| Model | Item code | Int. Vol. (L) | Retort Dim. (ØxH) (mm) | Int. Dim. (ØxH) (mm) | Ext. Dim. (WxHxD) (mm) | Power (kW) | Weight (kg) |
| CP 1050-3-P3 | PACKCU3 | 1.3 | Ø108 x 145 | Ø150 x 190 | 900 x 750 x 400 | 2.1 | 139 |
Download product data sheet
