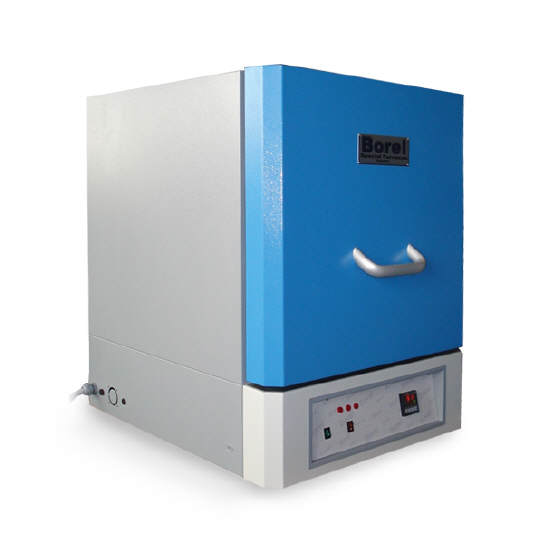

Chamber Furnaces 1400 °C

Electric chamber furnace for all applications, high temperature

Product Description
Construction: Robust construction made of bent plate. Vertical lifting front door.
Insulation: Multilayer insulation. Interior in ceramic fibre and refractory bricks.
Heating: Silicon carbide heating elements. The heating is turned off at the opening of the door.
Electricity: 9 liters and less, single-phase 230 VAC, 50 Hz. From 12 liters, 3x400 VAC, 50 Hz.
Regulation: Axron Swiss PID temperature controller.
Documentation: CE marking and operating instructions in English.
Delivered with: Removable ceramic sole.

Options available upon request: Axron Swiss Temperature Programmer, Over temperature protection, Additional metal or ceramic sole, Additional set of heating elements, Extended warranty.

Model Item code Int. Vol. (L) Int. Dim. (WxHxD) (mm) Ext. Dim. (WxHxD) (mm) Power (kW) Weight (kg)
FP 1400-5 G15000 5.25 150 x 140 x 250 550 x 650 x 580 3.3 64
FP 1400-9 G15001 9 200 x 180 x 250 560 x 720 x 640 4.4 65
FP 1400-15 G15002 15 220 x 220 x 310 590 x 790 x 690 5.8 67
FP 1400-30 G15003 29.7 250 x 270 x 440 660 x 800 x 730 11.5 105

Download product data sheet
