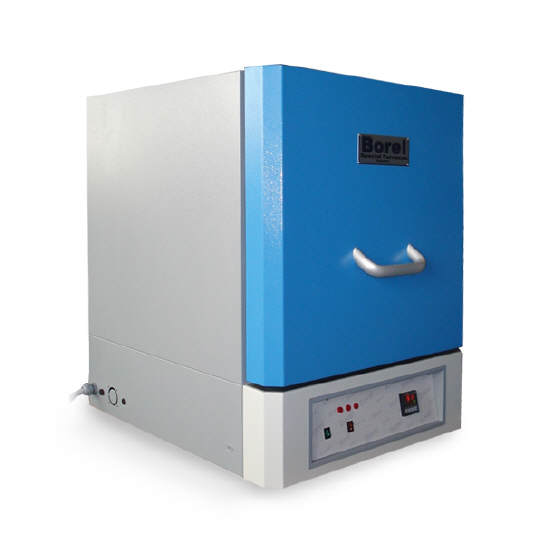

Chamber Furnaces 1600 °C
Electric chamber furnace for all applications, high temperature
 |
 |
 |
|
||
 |
||
|
||
 |
Product Description
Construction: Robust construction made of bent plate. Vertical lifting front door.
Insulation: Multilayer insulation. Interior in ceramic fibre and refractory bricks.
Heating: Silicon carbide heating elements. The heating is turned off at the opening of the door.
Electricity: 3x400 VAC, 50 Hz.
Regulation: Axron Swiss PID temperature controller.
Documentation: CE marking and operating instructions in English.
Delivered with: Removable ceramic sole.
Options available upon request: Axron Swiss Temperature Programmer, Over temperature protection, Additional metal or ceramic sole, Additional set of heating elements, Extended warranty.
| Model | Item code | Int. Vol. (L) | Int. Dim. (WxHxD) (mm) | Ext. Dim. (WxHxD) (mm) | Power (kW) | Weight (kg) |
| FP 1600-5 | G15010 | 5.0 | 150 x 140 x 250 | 550 x 650 x 580 | 5.2 | 66 |
| FP 1600-9 | G15012 | 8.6 | 200 x 180 x 250 | 560 x 720 x 640 | 5.9 | 73 |
| FP 1600-15 | G15013 | 15 | 220 x 220 x 310 | 590 x 790 x 690 | 7.0 | 85 |
| FP 1600-30 | G15015 | 29.7 | 250 x 270 x 440 | 660 x 800 x 730 | 11.5 | 105 |
Download product data sheet
