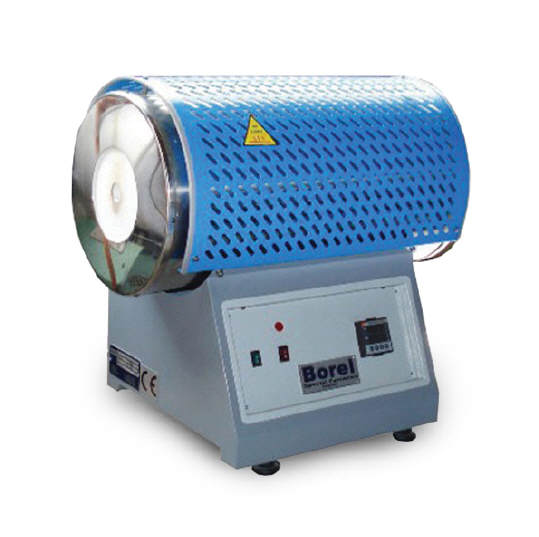

Tube Furnaces 1400 °C

Tubular electric furnace, for all applications

Product Description
Construction: Robust construction made of bent plate.
Insulation: Multilayer insulation. Interior in ceramic fibre and refractory bricks.
Heating: Heating elements in silicon carbide.
Electricity: 3x400 VAC, 50 Hz.
Regulation: Axron Swiss PID temperature controller.
Documentation: CE marking and operating instructions in English.

Options available upon request: Axron Swiss Temperature Programmer, Equipment to work gas, Equipment to work under vacuum, Vertical version, Extended warranty.

Model Item code Heated Lenght
(mm)
Tube Dim. (Øxlenght)
(mm)
Ext. Dim. (WxHxD) (mm) Power (kW) Weight (kg)
TU 1400-20-180 G15040 180 26 x 600 600 x 520 x 350 1.5 19
TU 1400-50-250 N16176 250 50 x 800 665 x 675 x 400 3.0 38
TU 1400-50-450 G15041 450 50 x 1000 850 x 745 x 400 4.0 40
TU 1400-75-450 N16181 450 75 x 1000 850 x 745 x 400 5.5 70
TU 1400-105-450 N16183 450 100 x 1000 850 x 785 x 400 7.0 90
TU 1400-105-610 N16185 610 100 x 1300 1150 x 785 x 400 7.5 95
TU 1400-50-610 N16187 610 50 x 1300 1150 x 745 x 400 4.5 50
TU 1400-75-610 G15042 610 75 x 1300 1150 x 745 x 400 6.5 82

Download product data sheet
