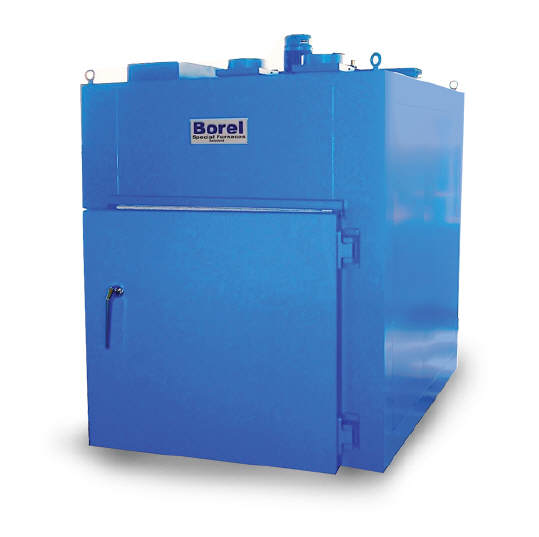

Industrial Ovens 350 °C

Forced convection electric oven for all applications

Product description
Construction: Monobloc type oven. Interior in aluminium and exterior in galvanised plate.
Insulation: Rock wool insulation of all surfaces, including door.
Ventilation: Adjustable horizontal ventilation, and adjustable exhaust.
Heating: Battery of shielded electrical resistors.
Electricity: 3x400 VAC, 50 Hz.
Regulation: Axron Swiss PID temperature controller, timer and hour counter.
Documentation: CE marking and operating instructions in English.

Options available upon request: Bottom: Bottomless, strengthened bottom 1500 kg, cuts to measure for trolley. Oven on the feet. Shelf. Swing doors (standard on model 8000 litres), guillotine door. Tunnel oven (front and rear doors). Extended warranty.

Model Item code Int. Vol. (L) Int. Dim. (WxHxD) (mm) Ext. Dim (WxHxD) (mm) Power (kW) Weight (kg)
IA 350-1000 G11416 1000 1000 x 1000 x 1000 1950 x 2100 x 1400 18 700
IA 350-1500 G14343 1500 1000 x 1000 x 1500 1950 x 2650 x 1400 30 850
IA 350-1500-H G14345 1500 1000 x 1500 x 1000 1950 x 2650 x 1400 30 800
IA 350-2000 G14353 2250 1000 x 1500 x 1500 1950 x 2650 x 1900 30 1000
IA 350-3000 G14355 3240 1200 x 1500 x 1800 2200 x 2700 x 2200 45 1200
IA 350-3000-H G14365 3240 1200 x 1800 x 1500 2200 x 3000 x 1900 45 1200
IA 350-3500 G14372 3375 1500 x 1500 x 1500 2500 x 2700 x 1900 45 1200
IA 350-4500 G14375 4500 1500 x 1500 x 2000 2500 x 2700 x 2500 54 1400
IA 350-4500-H G14380 4500 1500 x 2000 x 1500 2500 x 2700 x 2500 54 1300
IA 350-6000 G14382 6000 1500 x 2000 x 2000 2500 x 3200 x 2500 60 1500
IA 350-8000 G14384 8000 2000 x 2000 x 2000 3000 x 3200 x 2500 75 1800

Download product data sheet
