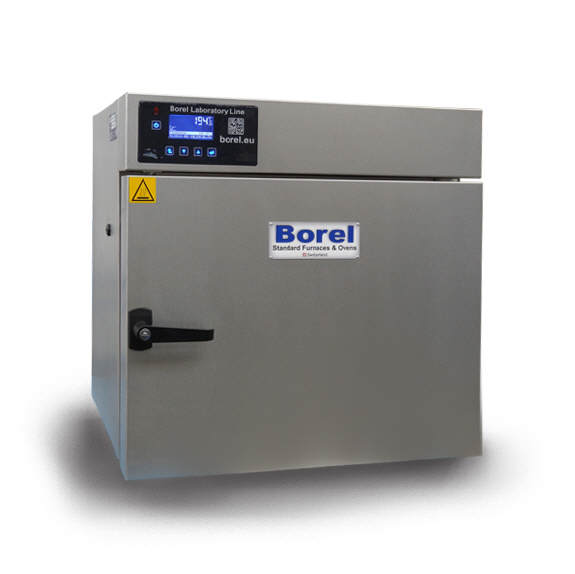

Laboratory Line Ovens 300 °C

Natural convection electrical oven for all applications

Product description
Construction: Stainless steel interior, multiple shelves supports.
Insulation: Rock wool insulation of all surfaces, including door.
Heating: Battery of shielded electrical resistors.
Electricity: Single-phase 230 VAC, 50 Hz.
Regulation: PID microprocessor. RS232 and USB interface. Software free to download on our website.
Documentation: CE marking and operating instructions in English.
Delivered with: 1 shelve. From 56 L, 2 shelves, and 3 shelves for 245 L.
Version: *-I models with inox housing.

Options available upon request: Additional shelf, Extended warranty, Option "PLUS" PID microprocessor controller with 5.7" touch screen panel, Inner glass door (from model 56 L), Internal lighting (max. temp. reduced to 250 °C), Perforared shelf, reinforced shelf for model starting from 56 L.
Reinforced construction for model starting from 56 L, Stainless steel cuvettes, additional Pt temperature sensor, wheels, dot printer, table with wheels, cables, RS422 & RS485 interfaces, "PLUS" software for PC features temperature monitoring.

Model Item code Int. Vol. (L) Int. Dim. (WxHxD) (mm) Ext. Dim (WxHxD) (mm) Power (kW) Weight (kg)
BLN 300-32 N19000 32 400 x 320 x 250 590 x 630 x 520 1.1 35
BLN 300-32-I N19001 32 400 x 320 x 250 590 x 630 x 520 1.1 35
BLN 300-56 N19002 56 400 x 390 x 360 590 x 700 x 620 1.6 50
BLN 300-56-I N19003 56 400 x 390 x 360 590 x 700 x 620 1.6 50
BLN 300-112 N19004 112 460 x 540 x 450 650 x 850 x 710 2.4 65
BLN 300-112-I N19005 112 460 x 540 x 450 650 x 850 x 710 2.4 65
BLN 300-245 N19006 245 600 x 800 x 510 810 x 1200 x 770 3.0 126
BLN 300-245-I N19007 245 600 x 800 x 510 810 x 1200 x 770 3.0 126
