Melting Furnaces 1100 °C

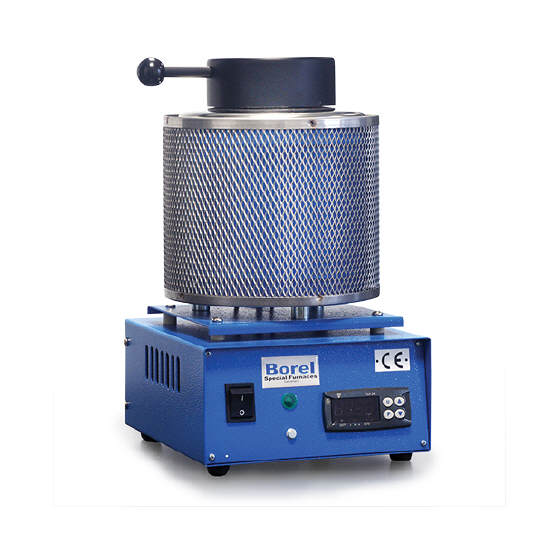

Removable crucible furnace for melting or maintaining melted state of non-ferrous metals. Handling of the crucible with tongs.
 |
 |
 |
|
||
 |
||
|
||
 |
Product Description
Construction: Access to crucible from top, manual cover closing.
Insulation: Multilayer insulation. Interior in ceramic fibre and refractory bricks.
Heating: Working chamber surrounded by heating elements.
Electricity: Single-phase 230 VAC, 50 Hz.
Regulation: Axron Swiss PID temperature controller.
Documentation: CE marking and operating instructions in English.
Delivered with: 1 crucible handling tongs, 1 crucible with pouring lip.

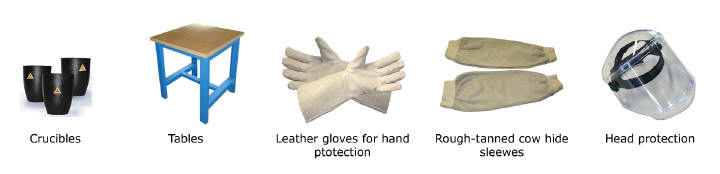

Options available upon request: Additional crucible, Shop table, Aluminised protective gloves, Protective apron, Extended warranty.
| Model | Item code | Int. Vol. (L) | Acceptable mass (kg) | Crucible Dim. (Ø x h) (mm) | Ext. Dim. (WxHxD) (mm) | Power (kW) | Weight (kg) |
| KP 1100-1 | N11341 | 0.11 | 1 | Ø41 x 110 | 230 x 340 x 220 | 0.7 | 5.8 |
| KP 1100-3 | N11345 | 0.33 | 3 | Ø52 x 150 | 270 x 420 x 275 | 1.4 | 10.8 |
