Melting Furnaces 1280 C

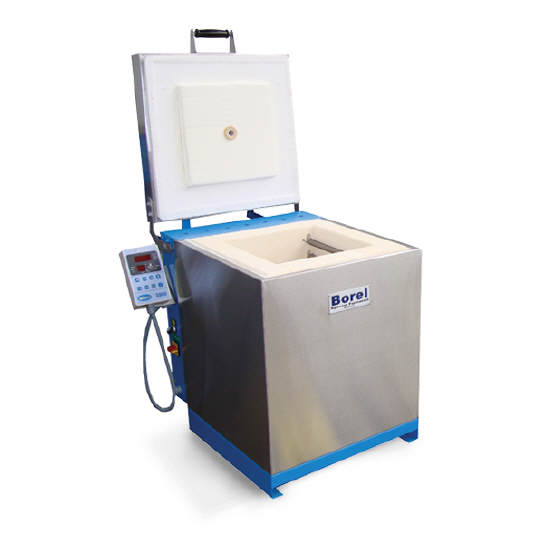

Removable crucible furnace for melting or maintaining melted state of non-ferrous metals. Handling of the crucible with tongs.

Product Description
Construction: Access to crucible from top, manual cover closing.
Insulation: Multilayer insulation. Interior in ceramic fibre and refractory bricks.
Electricity: Single-phase 230 VAC, 50 Hz.
Regulation: Axron Swiss PID temperature controller.
Documentation: CE marking and operating instructions in English.
Delivered with: 1 pair of tongs, 1 crucible, 1 crucible levelling hearth.

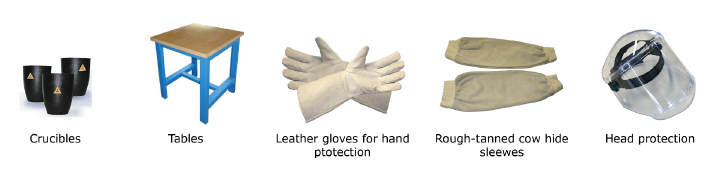

Options available upon request: Additional crucible, Personal protective equipment, Flap on the lid, Shop table, Extended warranty.

Model Item code Int. Vol. (L) Acceptable mass (kg) Crucible Dim. (Ø x h) (mm) Ext. Dim. (WxHxD) (mm) Power (kW) Weight (kg)
CA 1280-6 N16381 8 60 220 x 260 600 x 620 x 670 4.5 76

Download product data sheet
