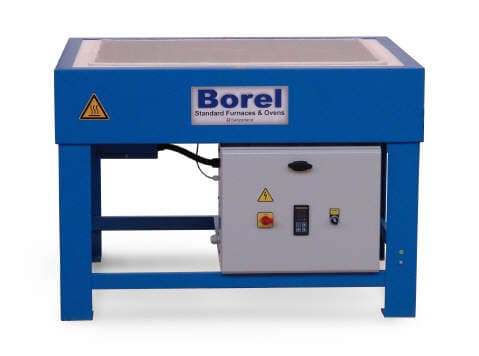

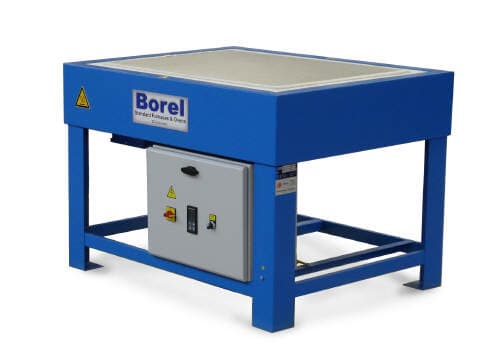

TC 200, TC 300
Heating Tables 200°C & 300°C
Heating table for all applications
Type : Heating table for all applications.
Construction : Welded chassis, aluminium tray.
Insulation : Rock wool insulation.
Heating : Heating components distributed throughout the heating surface.
Electricity : Voltage 230 VAC, 50 Hz up to 4 kW; voltage 3x400 VAC, 50 Hz from 4 kW.
Regulation : Axron Swiss PID controller.
Specifications
| Model | Item code | Volume (L) | Internal dimensions (W×H×D mm) | External dimensions (W×H×D mm) | Power (kW) | Weight (kg) |
|---|---|---|---|---|---|---|
| TC 200-16 | P711326 | — | — | 500 x 800 x 500 | 1.0 | — |
| TC 200-26 | P711313 | — | — | 750 x 800 x 500 | 1.6 | — |
| TC 200-42 | P711321 | — | — | 750 x 800 x 750 | 2.5 | — |
| TC 200-58 | P711322 | — | — | 1150 x 800 x 950 | 3.4 | — |
| TC 200-81 | P711323 | — | — | 1150 x 800 x 1150 | 4.9 | — |
| TC 200-126 | P711324 | — | — | 1650 x 800 x 1150 | 7.6 | — |
| TC 200-180 | P711325 | — | — | 2250 x 800 x 1150 | 10.9 | — |
| TC 300-16 | P711327 | — | — | 500 x 800 x 500 | 1.9 | — |
| TC 300-26 | P711328 | — | — | 750 x 800 x 500 | 3.1 | — |
| TC 300-42 | P711329 | — | — | 750 x 800 x 750 | 4.9 | — |
| TC 300-58 | P711330 | — | — | 1150 x 800 x 950 | 7.0 | — |
| TC 300-81 | P711331 | — | — | 1150 x 800 x 1150 | 9.7 | — |
| TC 300-126 | P711332 | — | — | 1650 x 800 x 1150 | 15.1 | — |
| TC 300-180 | P711333 | — | — | 2250 x 800 x 1150 | 21.7 | — |
