Car-Hearth Furnaces 1100 °C

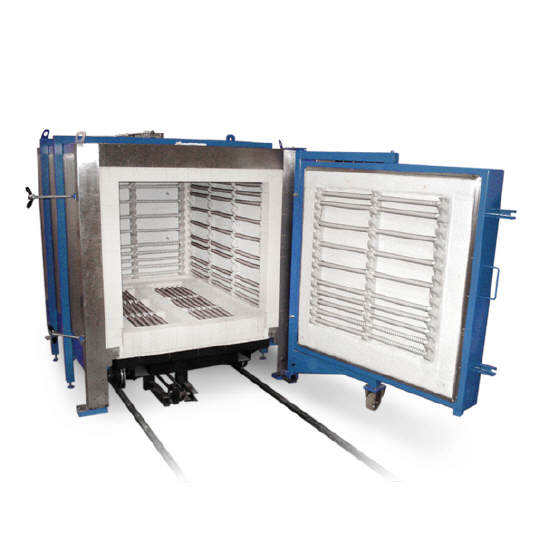

Chamber furnace with mobile hearth (trolley on rails)

Product Description
Construction: Robustly constructed in folded and profiled sheet steel.
Insulation: Multilayer insulation. Interior in ceramic fibre and refractory bricks.
Electricity: 3x400 VAC, 50 Hz.
Regulation: Axron Swiss temperature controller/programmer, 30 programs of 15 segments with delayed start time setting function.
Documentation: CE marking and operating instructions in English.

Options available upon request: Electric trolley, Metal or ceramic sole, Drop-down door, Tunnel oven (front and rear doors), Extended warranty.

Model Item code Int. Vol. (L) Int. Dim. (WxHxD) (mm) Ext. Dim. (WxHxD) (mm) Power (kW)
CH 1100-1500 N16539 1500 1000 x 1000 x 1500 1500 x 1950 x 2200 56
CH 1100-2000 N16540 2000 1000 x 1000 x 2000 1500 x 1950 x 2700 75
CH 1100-2400 N16541 2400 1200 x 1000 x 2000 1700 x 1950 x 2700 110
CH 1100-2500 N16542 2500 1000 x 1000 x 2500 1500 x 1950 x 3200 120
CH 1100-3000 N16543 3000 1000 x 1000 x 3000 1500 x 1950 x 3700 172
CH 1100-3000-H N16544 3000 1200 x 1000 x 2500 1700 x 1950 x 3200 172
CH 1100-3600 N16545 3600 1200 x 1000 x 3000 1700 x 1950 x 3700 185

Download product data sheet
