Car-Hearth Furnaces 1200 °C

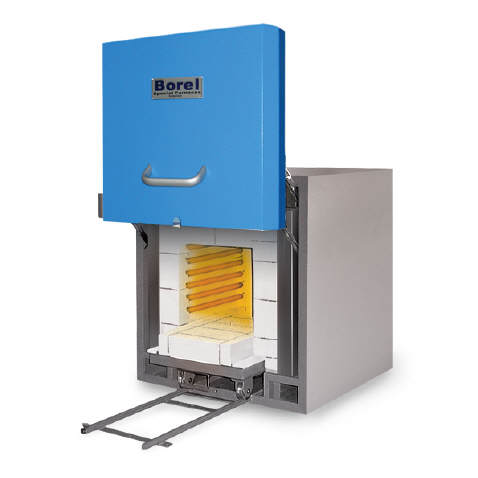

Chamber furnace with mobile hearth (trolley on rails)

Product Description
Construction: Robust construction made of bent plate. Vertical lifting front door.
Insulation: Multilayer insulation. Interior in ceramic fibre and refractory bricks.
Aeration: Exhaust vent on top.
Heating: Coil resistors on ceramic tubes. The heating is turned off at the opening of the door.
Electricity: 3x400 VAC, 50 Hz.
Regulation: Axron Swiss PID temperature controller.
Documentation: CE marking and operating instructions in English.
Delivered with: Removable ceramic sole.

Options available upon request: Shop table, Axron Swiss Temperature Programmer, Timer, Protection of the heating elements, Extended warranty.

Model Item code Int. Vol. (L) Int. Dim. (WxHxD) (mm) Ext. Dim. (WxHxD) (mm) Power (kW) Weight (kg)
FM 1200-45 N16348 45 300 x 300 x 500 660 x 820 x 810 7.5 106
FM 1200-60   60 400 x 300 x 500 760 x 800 x 840 9.6 190

Download product data sheet
