Chamber Furnaces 1300 °C

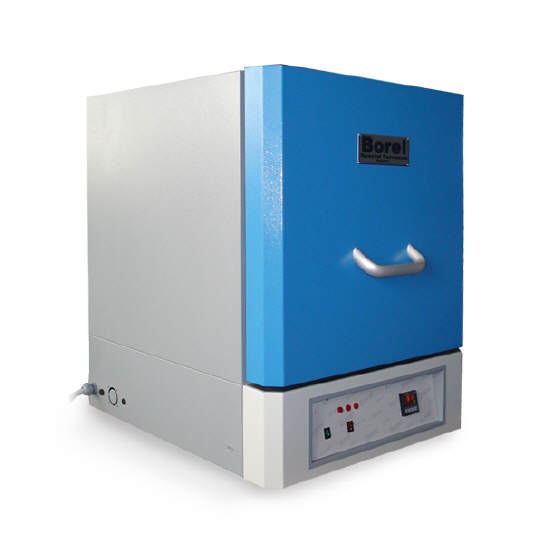

Electric chamber furnace for all applications

Product Description
Construction: Electric chamber furnace for all applications.
Construction: Robust construction made of bent plate. Vertical lifting front door.
Insulation: Multilayer insulation. Interior in ceramic fibre and refractory bricks.
Aeration: Rear exhaust.
Heating: Coil resistors on ceramic tubes. The heating is turned off at the opening of the door.
Electricity: 18 liters and less, single-phase 230 VAC, 50 Hz. From 25 liters, 3x400 VAC, 50 Hz.
Regulation: Axron Swiss PID temperature controller.
Documentation: CE marking and operating instructions in English.
Delivered with: Removable ceramic sole.

Options available upon request: Axron Swiss Temperature Programmer, Over temperature protection, Additional metal or ceramic sole, Timer, Extended warranty.

Model Item code Int. Vol. (L) Int. Dim. (WxHxD) (mm) Ext. Dim. (WxHxD) (mm) Power (kW) Weight (kg)
FP 1300-6 G14986 7.0 200 x 140 x 250 550 x 650 x 580 2.45 58
FP 1300-10 G14989 10 200 x 200 x 250 560 x 720 x 640 3.6 67
FP 1300-15 G14990 15 220 x 230 x 300 560 x 790 x 640 3.6 73
FP 1300-30 G14992 30 280 x 280 x 380 590 x 790 x 690 6.0 84
FP 1300-45 G14745 45 300 x 300 x 500 660 x 820 x 810 7.5 114

Download product data sheet
