Lab furnaces 1100 °C

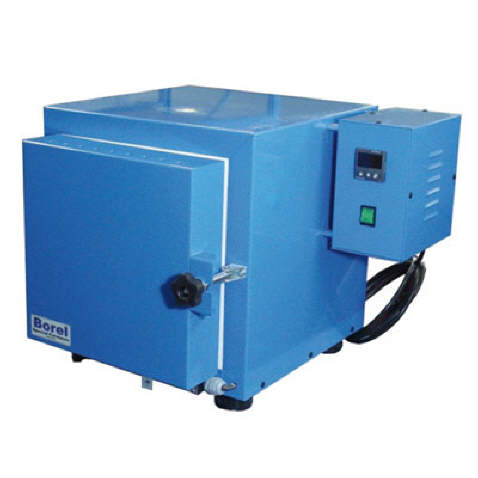

Compact electric chamber furnace for all applications

Product Description
Construction: Hinged door.
Insulation: Multilayer insulation. Interior in ceramic fibre and refractory bricks.
Aeration: Exhaust vent on top.
Heating: Electrical coil resistors held in grooves on 2 surfaces. The heating is turned off at the opening of the door.
Electricity: Single-phase 230 VAC, 50 Hz.
Regulation: Axron Swiss PID temperature controller.
Documentation: CE marking and operating instructions in English.
Delivered with: Exhaust vent plug.

Options available upon request: Axron Swiss Temperature Programmer, Flammable gas safety equipment, Shop table, Personal protective equipment, Extended warranty.

Model Item code Int. Vol. (L) Int. Dim. (WxHxD) (mm) Ext. Dim. (WxHxD) (mm) Power (kW) Weight (kg)
FL 1100-10 N14734 10.6 215 x 220 x 210 545 x 425 x 520 1.2 42

Download product data sheet
