Flammable Safety Kits for Muffle Furnaces
Compact and safe pack for protective gas piloting for metal muffle furnaces for thermal treatment for use with flammable gas. Ideal for RetroFit and safety compliance of old furnaces without safety systems.
 |
 |
 |
|
||
 |
||
|
||
 |
Product Description

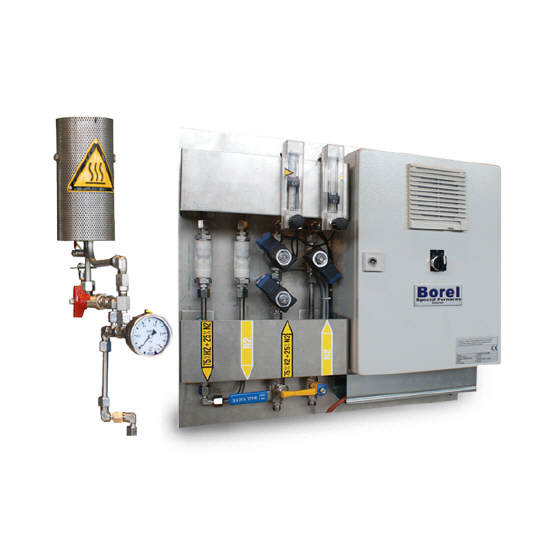

Construction: Built in 2 parts. The gas safety unit comprising the control, the electrical and pneumatic equipment and the burner which is fitted on the retort or on the muffle by sealed connection with a 10mm diameter tube.
Electricity: Voltage 230 V, frequency 50 Hz, power rating 200 W (400 V avaible on request).
Documentation: CE marking and operating instructions in English.
Type of gas: Nitrogen, hydrogen or gas mixture: forming gas, cracked ammonia.
Safety equipment: 1 programmable controller, adjustment and display of gas flow rates, nitrogen purge, retort pressure display by manometer, burner with lighting coil to burn outlet gas, double safety valves, pressure relief valve, anti-return valve. All delivered with 2x3-meters gas supply tubes.
Options available upon request: Hearth/muffle adapter (N15423), Installation, commissioning, training, Shop table, Extra supply tube, Extended warranty.
| Model | Item code | For old SOLO furnaces | For old BOREL furnaces | Weight (kg) |
| KG 100-C - Kit for retort/muffle of 4.5 liters | N15223C | - | Cube 400 | 30 |
| KG 100-S - Kit for retort/muffle of 4.5 liters | N15223 | 221-15/25 | 4.5/650S | 30 |
| KG 100-M - Kit for retort/muffle of 12.5 liters | N15223M | 221-15/35 | 17/650M | 30 |
| KG 100-L - Kit for retort/muffle of 48 liters | N15223L | 221-15/50 | 48/650L | 30 |
