Ladles
Ladles

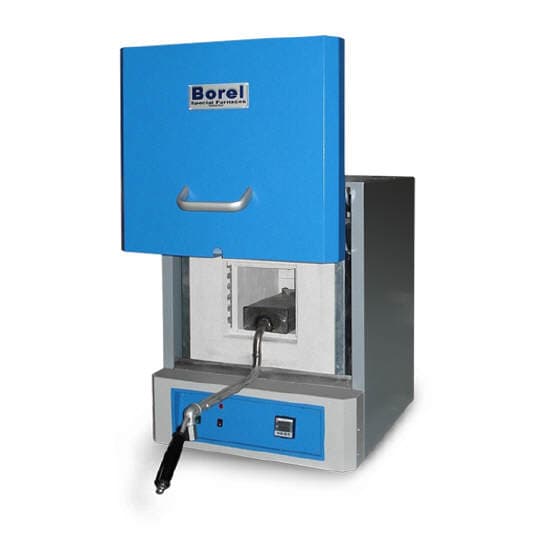

Mobile muffle in refractory steel with inert gas inlet
Type : A ladle is a mobile muffle in refractory steel provided with an inert gas inlet.
Application : The muffle is designed to be placed in a chamber furnace with the parts arranged inside, allowing work under protective gas.
Specifications
| Model | Item code | Volume (L) | Internal dimensions (W×H×D mm) | External dimensions (W×H×D mm) | Power (kW) | Weight (kg) |
|---|---|---|---|---|---|---|
| Ladle S | N15400 | 1.4 | 120 x 60 x 200 | 125 x 65 x 260 | — | 4.5 |
| Ladle M | N15401 | 4 | 190 x 90 x 250 | 195 x 110 x 320 | — | 7.5 |
| Ladle L | N15402 | 10 | 250 x 140 x 295 | 255 x 155 x 420 | — | 11.5 |
